Baja Designs Angled Rock Light Mount - Universal Fitment

The OG affordable rack light solution with a more universal fitment.
Ever need that perfect amount of light at camp or when doing trail repairs? This Baja Designs rock light mount is a perfect solution. It allows your light pattern to be aimed where it's needed most with an integrated 35° angle from the edge of the roof rack.

The mount is compatible with both the standard BD rock light as well as the Dome light variants. (2.35" bolt spacing) These mounts utilize the M4 hardware that is included with the BD rock lights (the shorter ones). Rock lights are NOT included.

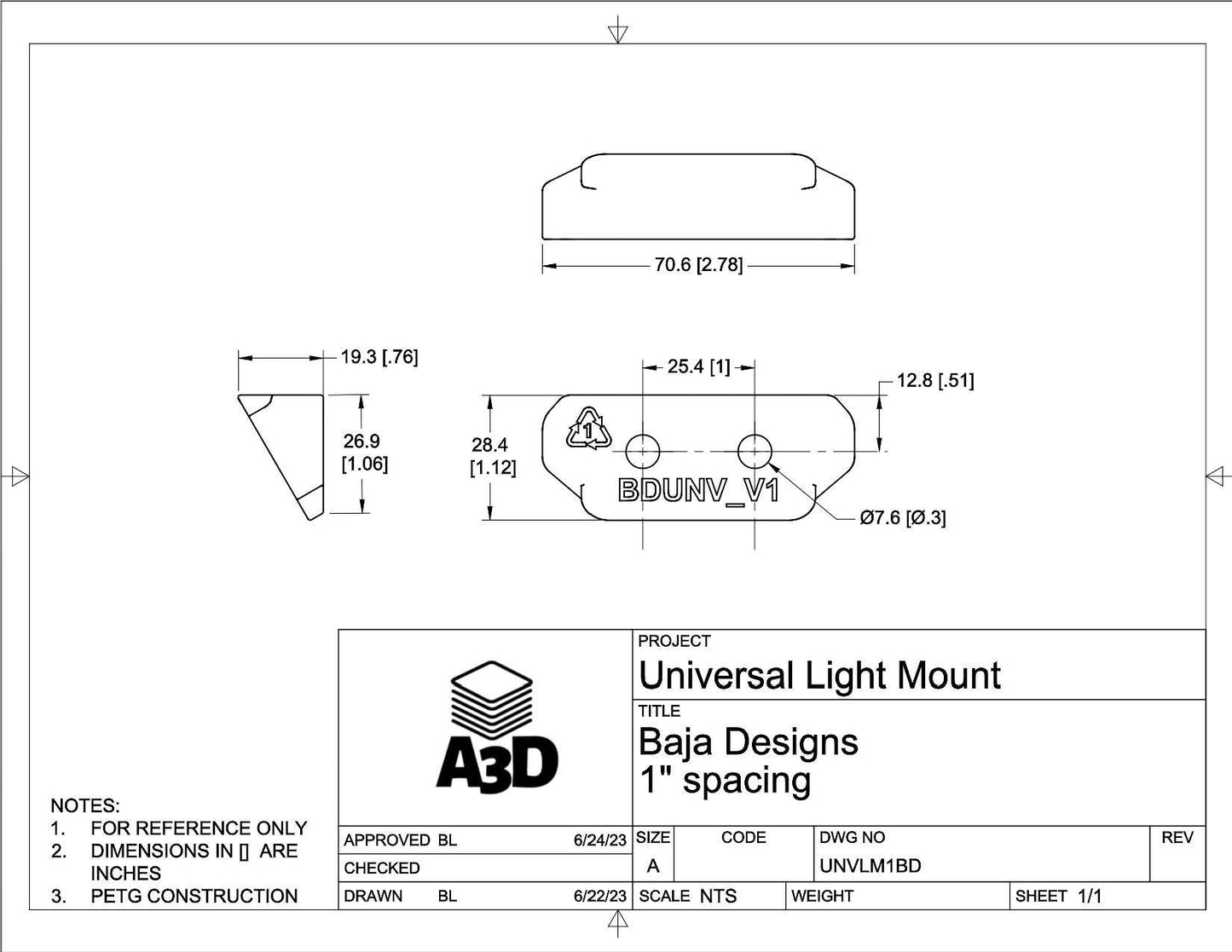

These mounts feature a "universal" flat mounting surface with 2X 1/4" DIA. holes for mounting that are 1" apart. Mount rock lights anywhere you can fit two bolts. This includes the rear, sides, and undersides of most racks, roof top tents etc. Light can be flipped to allow top or bottom wire placement. These aren't guaranteed to fit any particular surface, but allow you to run them anywhere you please. Fully compatible with 80/20 nuts or other mounting accessories. For other light/rack combos please visit our shop.


These mounts are sold individually.

The following 304SS hardware is included for install:
-2X 1/4" X 1" Socket Cap Bolt
-4X 1/4" Flat washers
-2X 1/4" Locknut

The following hardware is NOT included & is required for install:
-2X M4 Screws (included with Light)

(note: there are other brands of lights that use the 2.35" bolt spacing. These may fit, but other spacers or alternative hardware may be required, for this reason fitment is only guaranteed to fit with the BD series of lights. There are old drawings online that show older gen BD Rock lights with a different spacing, these mounts DO NOT fit prior gen rock lights with narrower spacing)

This mount is manufactured in Southern California at the A3D Print Farm from a premium Fiber-reinforced PETG resin blend that features excellent impact, heat, and UV resistance and will provide a solid mount for years to come. Even better, its backed by our 1 year limited warranty. (see FAQ section for more details)

*Disclaimers* This part is made using additive manufacturing (3D Printing) and will display some of the common attributes like layer lines and minor printing imperfections. These are strictly cosmetic and have no effect on part performance. These mounts feature Heatsert threads, max light mounting Torque is 2.2 ft/lbs. (3 Nm), exceeding this can cause the threads to strip. Max Bolting torque on 1/4" bolts is 3.7 ft-lbs (5.8 Nm). Washers must be used on 1/4" hardware.
