Harbor Freight Angled Rock Light Mount - Universal Fitment

The OG affordable rack light solution with a more universal fitment.
Ever need that perfect amount of light at camp or when doing trail repairs? This Baja Designs rock light mount is a perfect solution. It allows your light pattern to be aimed where it's needed most with an integrated 35° angle from the edge of the roof rack.

The mount is compatible with the standard HF rock light (Roadshock p/n: 57205) & Ironman 4x4 p/n: IRL120BK. It may also be compatible with lights that use the same bolt pattern (2.15" bolt spacing) but fitment isn't guaranteed. Lights are NOT included. These mounts utilize 2 Metal M4 threaded inserts. No fussing with nuts.

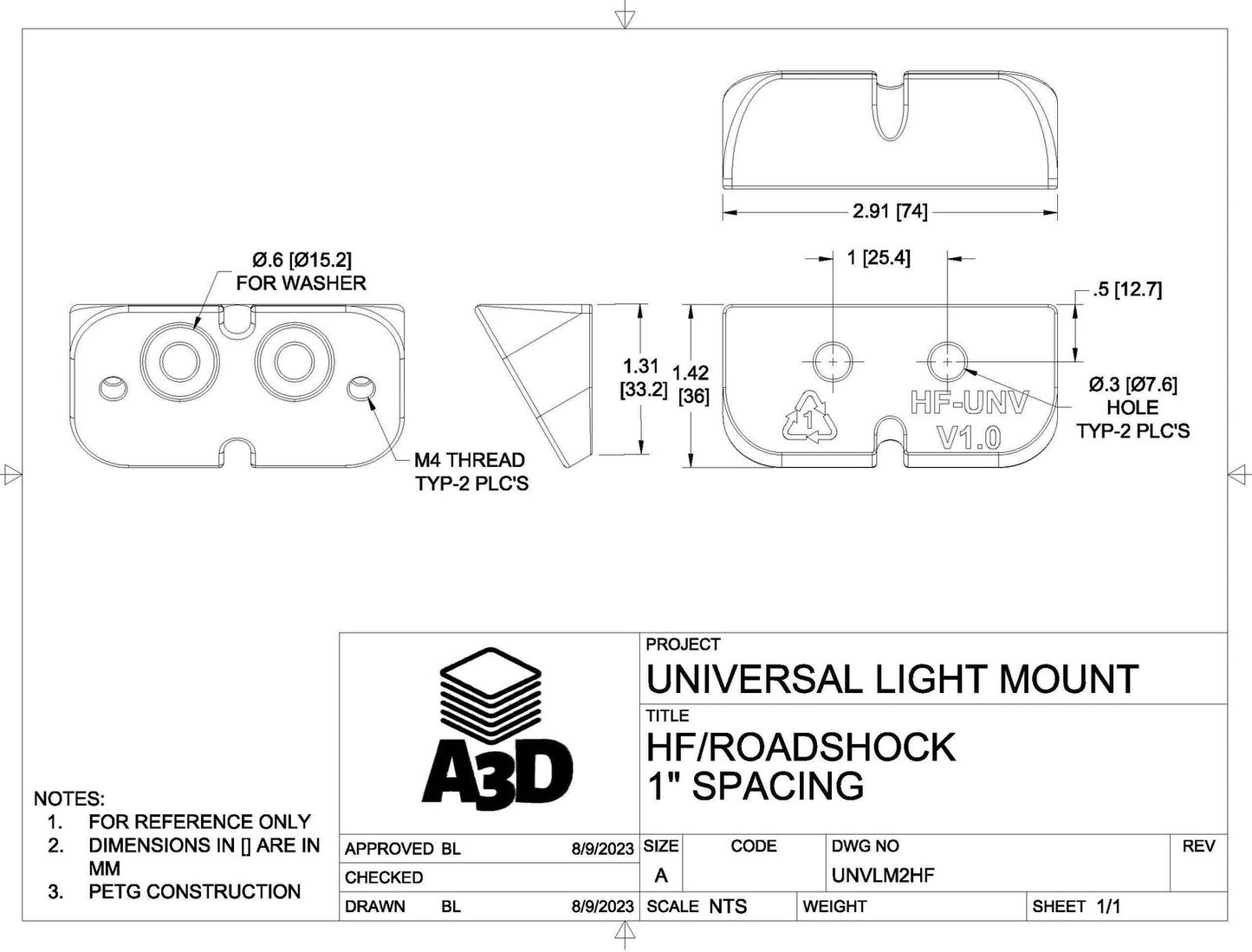

These mounts feature a "universal" flat mounting surface with 2X 1/4" DIA. holes for mounting that are 1" apart. Mount rock lights anywhere you can fit two bolts. This includes the rear, sides, and undersides of most racks, roof top tents etc. Notches in both sides of the mount allow the light to be flipped to allow top or bottom wire placement. These aren't guaranteed to fit any particular surface, but allow you to run them anywhere you please. Fully compatible with 80/20 nuts or other mounting accessories. For other light/rack combos please visit our shop.


These mounts are sold individually.
Included 304SS Hardware needed for install
-2X M4 x 16mm flange head screw (light mounting hardware)
-2X 1/4" X 1" Socket Cap Bolt
-4X 1/4" Flat washers
-2X 1/4" Locknut


This mount is manufactured in Southern California at the A3D Print Farm from a premium PCTG/PETG resin blend that features excellent impact, heat, and UV resistance and will provide a solid mount for years to come. Even better, its backed by our 1 year limited warranty. (see FAQ section for more details)

*Disclaimers* This part is made using additive manufacturing (3D Printing) and will display some of the common attributes like layer lines and minor printing imperfections. These are strictly cosmetic and have no effect on part performance. These mounts feature Heatsert threads, max light mounting Torque is 2.2 ft/lbs. (3 Nm), exceeding this can cause the threads to strip. Max Bolting torque on 1/4" bolts is 3.7 ft-lbs (5.8 Nm) Washers must be used on 1/4" hardware.
